Product Description

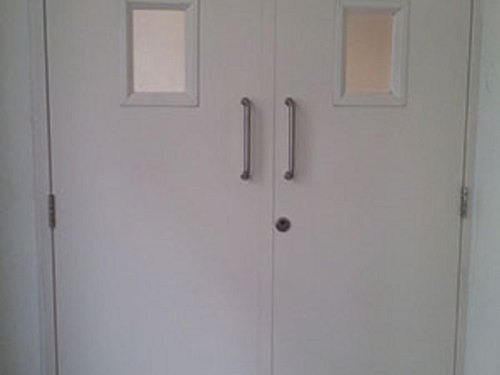

GENERAL DOORS (HMPS DOORS)

Radiant’s General Doors are the most preferred choice for numerous commercial and industrial establishments due to their advanced safety and security features. Ideal for office entrances, factories, educational institutions, hospitals, hotels and other application areas, these doors are low on maintenance and high on aesthetics. Manufactured with highest standards of quality parameters, these eco-friendly doors have developed a reputation for functionality and long-lasting durability. Factory-finished with polyurethane paint, these doors come in a wide range of finishes including, wood grain.

Design Highlights:

  • Available in Galvanized, Mild Steel and Stainless Steel.
  • Clear Vision lite for any size
  • Factory prepped to receive all type of hardware.
  • High Aesthetic and Robust Structure.
  • Factory finished for Primer and Paint Finish.

Door Leaf

Shutter sheet thickness is 0.80mm Infill material is Honeycomb / Mineral Wool (48 kg /cu.m).

Door Frame

Frame sheet thickness is 1.20mm.

Finish

General Doors are Pure Polyester Powder Coated / PU 60-80 Micron. They also include provision for fixing Panic Bar, SS D-Type or Lever Handle with Lock, SS Push Plate, SS Flush Bolt, SS Ball Bearing Hinges, Door Closers, & Anchor fasteners with Cap etc.

Technical Specification Sheet - Fire Hydrant Shaft Doors

FIRE HYDRANT SHAFT DOOR

Material – Door Shutters and Frames

SHUTTERS: The door shutters are to be made from 16 gauge (1.6mm) zinc coated Galvanised Steel Sheets with zinc coating of 80-120 g/Sqm.The glass used shall be of minimum 4 mm thk clear float glasses with spacer frame all around and desiccants in it.The fixtures shall be provided as specified in the drawings or as required by the Project Manager. The word “Fire shall be written on the glass as shown in the drawings or as per the requirements of the local CFO.

FRAMES: The frames shall be made of 16 gauge (1.6 mm) Zinc coated Galvanised Steel Sheets with zinc coating of 80-120 g/Sqm pressed bent to shape using bending machine and mitred with square edges.

Painting: Frames and shutters shall be painted with epoxy paint. The paint shall be done with two coats over a single coat of primer paint over the surface. The surface to be painted shall be free from any rust, grease or any undulation.

Technical Specification Sheet-General Purpose Doors

HMPS / GENERAL PURPOSE STEEL DOORS

MATERIAL

Door Frames and Shutter are made from G.I. / M.S. / S.S. Sheets.

DOOR SHUTTER

Constructed from 0.80mm (22 gauge) thick G.I. / M.S. / S.S. Sheet formed to provide a 40mm thick fully flush, double skin door shell with lock seam joints at stile edges. Internal Reinforcements are provided at top, Bottom and Stile Edges.  The infill material will be Mineral Wool (Density 48 Kg/M3) / Honeycomb Board containing no asbestos or other inorganic fibres.  The internal construction of the doors varies with the size of the door.

DOOR FRAMES

Produced from 1.20mm (18 gauge) thick G.I. / M.S. / S.S. Sheet formed to Single Rebate profile of size 100mm x 57mm (+/- 0.3mm) with a maximum bending radius of 1.4mm.

The door frames may be built into the brick or block walls using corrugated “TEE” Anchors not welded to the frame (first fix).  Frames may also be fixed on plastered openings with the help of Metallic Expansion Shield with counter sunk screw (second fix). Doors Frames are supplied to knock-down form with butt joints for bolted assembly at site.

FINISH

The door frames and door shutters are primed with Zinc-Phosphate Stoving Primer and finished with two coats of Enamel paint / Powder Coating as required.
